Equipment : Spectra Pure

Excimer is a contraction of “Excited Dimer,”a description of a diatomic molecule in which the component atoms are bound in the excited state, but not in the ground state. The important gas molecules are rare gas halides including argon fluoride, krypton fluoride, and xenon chloride.

SPECTRAPURE

Toxic Gas Room Purifier
Gas Detector

SMARTPURE

Smart Pure is a room purification device for the in case of F2 leakage in the room!

Smart

Fully automatic operation Nothing any manual operations after turn on the power!
Enough treatment capacity for Lasik customers 120L of F2 can be treatment (Approx. 10 cylinders can be treatment capacity)

Compact

Save the foot space

Easy

Just plug into the wall outlet for installation!

SPECIFICATION

Target gas: F2(Up to 1% concentration)
Treatment capacity: 120L of F2
Intake flow: Up to 5m3/min
Dimension: D=300, W=300, H=800(mm)
Filter life: 1 year (No F2 gas flow condition)
Power: AC100-240V 1Phase
No. of alarm signal input: 1 (Dry contact)

O2 FIGHTER

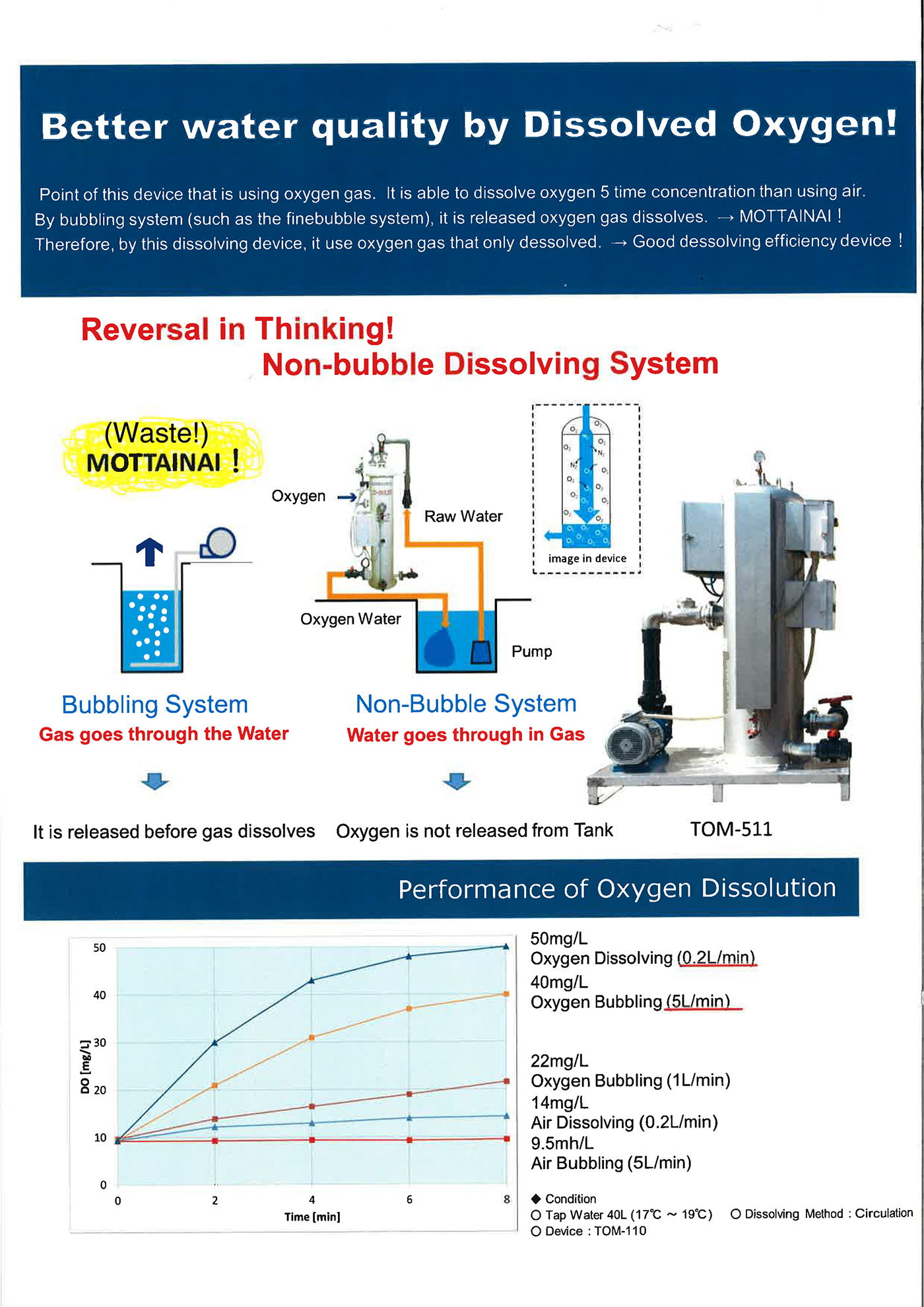

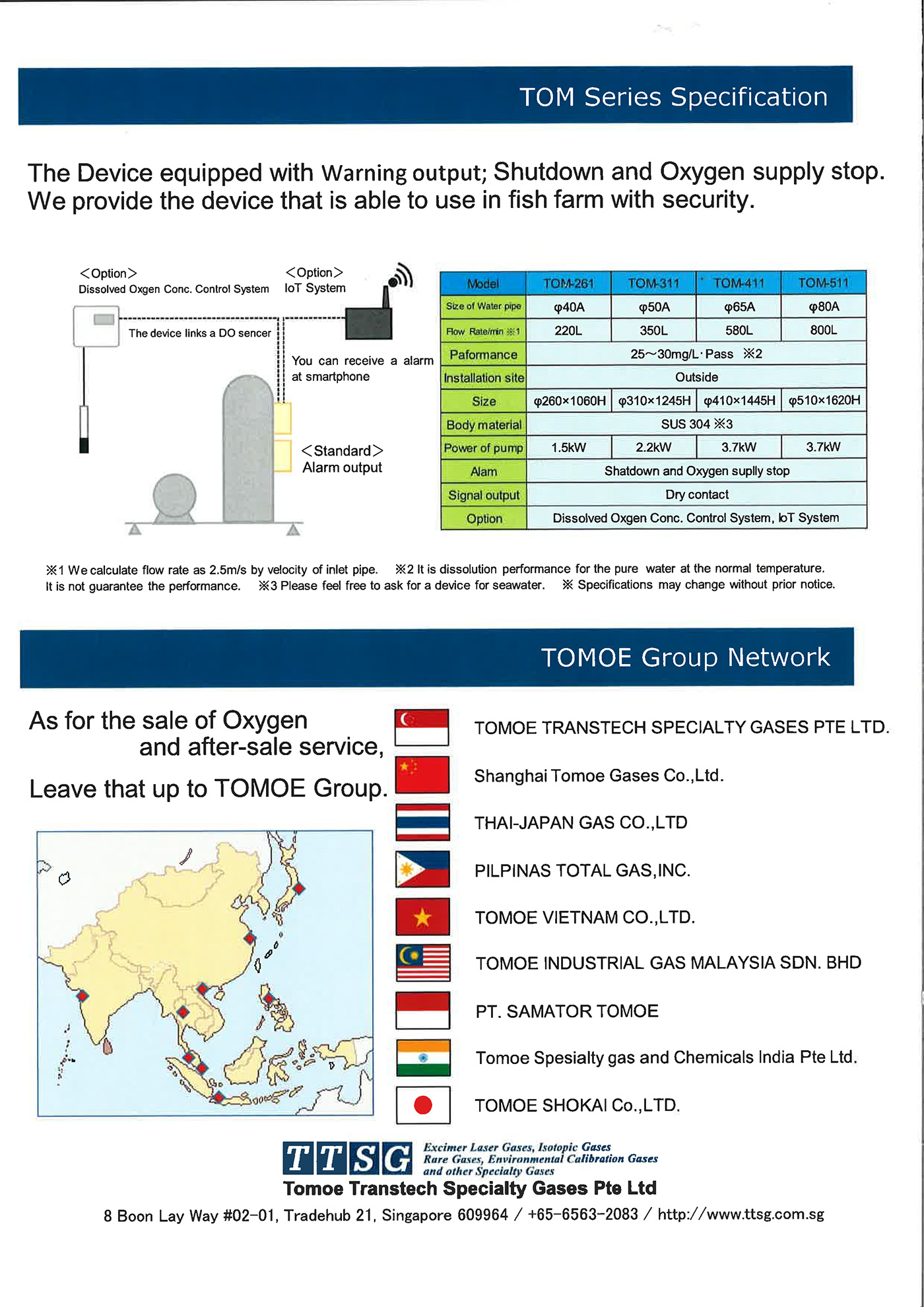

O2 Fighter is oxygen dissolving machine, It is able to dissolve oxygen with less wastage of oxygen compare with fine bubbling system.

VALVE SHUTTER

Valve Shutter (VS-100 Mark II)

VALVES MANIFOLDS

CYLINDER CABINETS

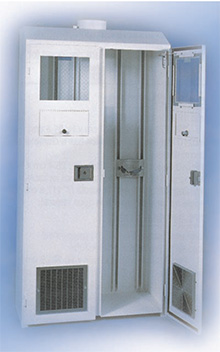

Spectra Cylinder Cabinet

F4000 Series

Spectra Gases gas safety cabinets are designed to provide maximum protection from hazardous gas cylinder leaks. When connected to a proper exhaust system, a constant gas flow pattern is achieved, ensuring that leakage does not accumulate. A variety of standard gas safety cabinets are available for housing one to four cylinders. Each unit is equipped with strut channel to accommodate the mounting of gas panels, cylinder brackets as well as cylinder shelves.

Features

Diffusion Plate: (instead of louvers): Offers better ventilation due to lower air resistance and better flow patterns.
Cabinet shell and doors constructed of 11 gauge (0.12” thick) cold rolled steel to provide maximum strength.
Self closing, self latching doors with locks.
Weather resistant white polyurethane paint.
1/4” thick wire reinforced safety glass.
Lockable access hatches designed to maintain 200ft./min. air velocity when open. Hatches allow for safe closing of any valve even in the event of toxic gas leak.
165 degree F sprinkler head.
Rubber floor mat provided to ensure a non-slip surface for cylinder.
